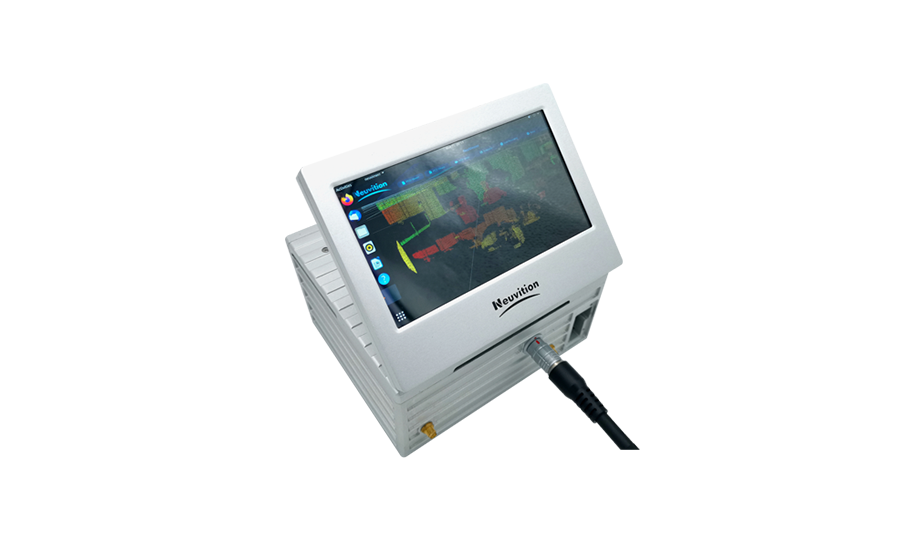

Titan M1-I is an all in one complete solid-state LiDAR with control and screen integrated together into a powerful package. By combining a powerful solid-state LiDAR with a touch screen, it makes the system more portable than before. This is the first long-range LiDAR sensor with control and visualization software built into the system. Moreover, the device comes with WIFI hotspot, and the 7-inch multitouch screen allows users to control the device. Users can directly use the device without connecting their personal computers or other IPCs (Industrial Personal Computer). It will work out of the box. Just turn on the power and it will run.

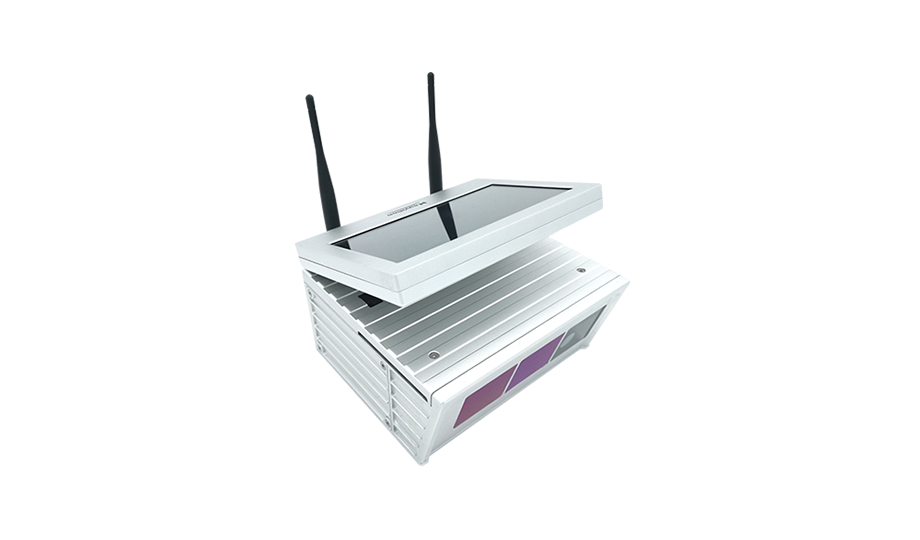

Portable
Portable solid-state LiDAR combines LiDAR, computer, and display into one

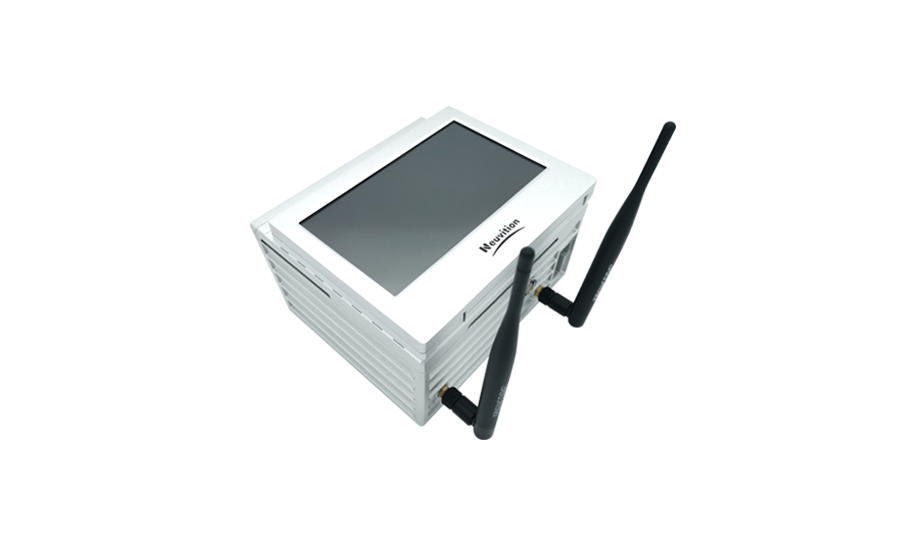

WIFI hotspot
The device comes with WIFI hotspot
Touch screen display
The 7-inch multitouch screen allows users to control the device
Open suite
Open development kit
3D Solid - State LiDAR Software
Real 3D Point Cloud
Video point cloud data fusion
Professional Algorithm
| Sensor Parameters | Distance | 1-200m @ 20% |
| Precision | ±2cm | |
| Resolution | H1750 x V480 | |
| Field of View | H45°, V25° | |
| Frame Rate | 1fps – 20fps | |
| Angular Resolution | H0.03°, V0.05° | |
| Others | Weight | 2kg |
| Sampling Rate | 1,500,000 Points/s（Max） | |
| Dimension | 180mm * 164mm * 102mm | |
| Operating Voltage | 9-60V DC | |
| Operating Temp. | -20°C ~ +65°C | |
| Protection Level | IP67 | |
| Power Consumption | 25W (Typical) | |
| CPU | Quad core 64-bit ARM-Cortex A72 running at 1.5GHz | |
| Operating system | Linux （ubuntu 18.04 or 20.04） | |
| USB ports | 2x USB3 type-A | |
| HDMI | 1 micro-HDMI | |
| Screen | 7 inch Multitouch screen 1024*600 |
| Distance | 1-200m @ 20% |
| Precision | ±2cm |
| Resolution | H1750 x V480 |
| Field of View | H45°, V25° |
| Frame Rate | 1fps – 20fps |
| Angular Resolution | H0.03°, V0.05° |
| Weight | 2kg |
| Sampling Rate | 1,500,000 Points/s（Max） |
| Dimension | 180mm * 164mm * 102mm |
| Operating Voltage | 9-60V DC |
| Operating Temp. | -20°C ~ +65°C |
| Protection Level | IP67 |
| Power Consumption | 25W (Typical) |
| CPU | Quad core 64-bit ARM-Cortex A72 running at 1.5GHz |
| Operating system | Linux （ubuntu 18.04 or 20.04） |
| USB ports | 2x USB3 type-A |
| HDMI | 1 micro-HDMI |
| Screen | 7 inch Multitouch screen 1024*600 |
